Part number P4-VW20T825-N13-H13.

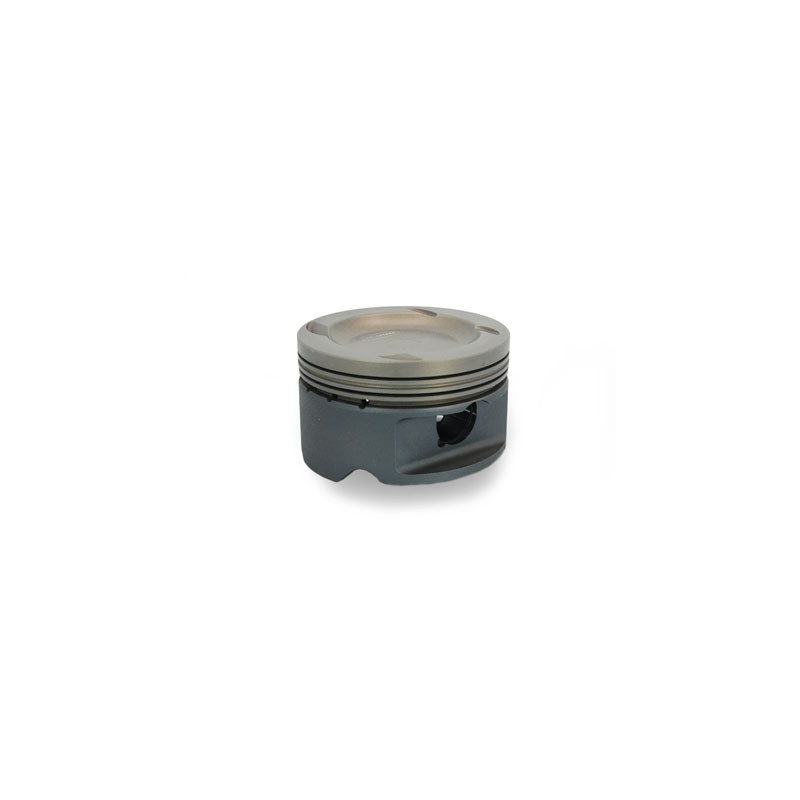

Supertech forged pistons kit (4 pcs.) 82.50mm CR 9.1:1.
These pistons come with upgraded Tool steel wrist pins (H13).
Audi / VW belt drive engines - 2.0 16V TFSI EA113 (AXX, BGB, BPJ, BPY, BWA)
|
Product detailed specification |
|
|
Bore size |
82.50mm |
|
Stroke |
92.80mm |
|
Supertech compression ratio (CR) |
9.1:1 |
|
OEM compression ratio (CR) |
10.5:1 |
|
Dome volume (CC) |
-12.50cm3 |
|
Compression height (CH) |
29.60mm |
|
Pin diameter |
20mm |
|
Features |
Accepts Turbo and Nitrous |
|
Fits for |
Audi / VW - 2.0 TFSI EA113 (AXX, BGB, BPJ, BPY, BWA) |
Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHATFSI14450620T
Profile: H-beam
C to C: 144mm
Big end diameter: 50.6mm
Pin diameter: 20mm
Big end width: 24.95mm
Quantity: 4 pcs., 8 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600HP (4 cylinder)
Advertised RPM rating: 9000RPM
AUDI / VW - 2.0 16V TFSI (EA113)
|
Product detailed specification |
|
|
Bore size |
82.50mm |
|
Stroke |
92.80mm |
|
JE Pistons compression ratio (CR) |
9.1:1 |
|
OEM compression ratio (CR) |
10.5:1 |
|
Dome volume (CC) |
-11.50cm3 |
|
Compression height (CH) |
29.60mm |
|
Pin diameter |
20mm |
|
Features |
Accepts Turbo and Nitrous; full round skirt |
|
Fits for |
Audi / VW - 2.0 TFSI EA113 (AXX, BGB, BPJ, BPY, BWA) |
ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.
