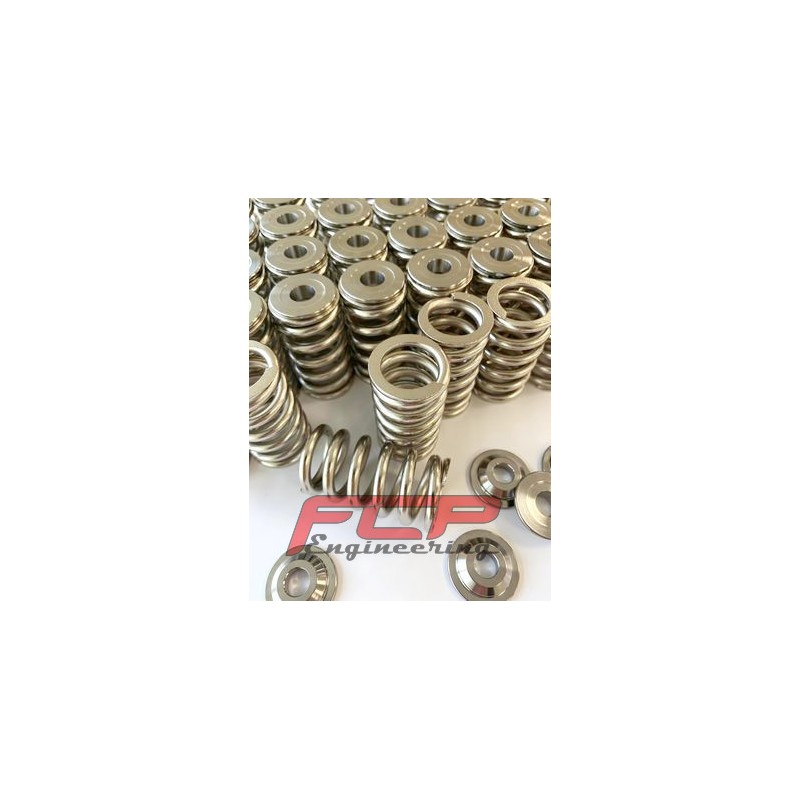

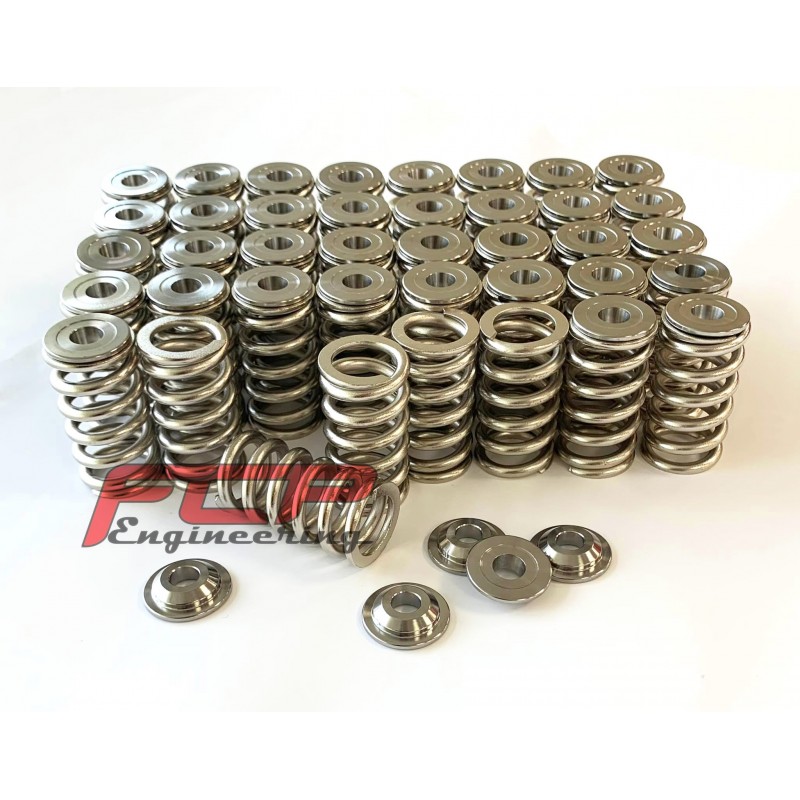

Audi S6 RS6 5.0 5.2 V10 TFSI FSI FCP valve spring kit + titanium retainers

Part number FCPVSTRATSI/40
FCP Egineering high performance nickel plated valve single spring kit
Audi RS6 C6 - 5.0 V10 TFSI
Audi S6 C6, S8 D3, R8 - 5.2 V10 FSI
€1,099.00
Availibilty:2 items
Add to Cart
Information
Spring data:
Seat pressure - 70lbs @ 38.40mm (intake), 82lbs @ 37.00mm (exhaust)
Open (lift) pressure - 172lbs @ 10mm (intake), 180lbs @ 10mm (exhaust)
Max lift - 11.90mm (intake), 10.60mm (exhaust)
Spring coil bind - 24.90mm
Rate - 10.20lbs/mm
Spring outer diameter - 24.00mm
Spring inner diameter - 16.50mm

Set includes:
Single springs - 40pcs.
Titanium retainers - 40pcs.
