Part number F2430P (Supertech TEVI-1058-HS)

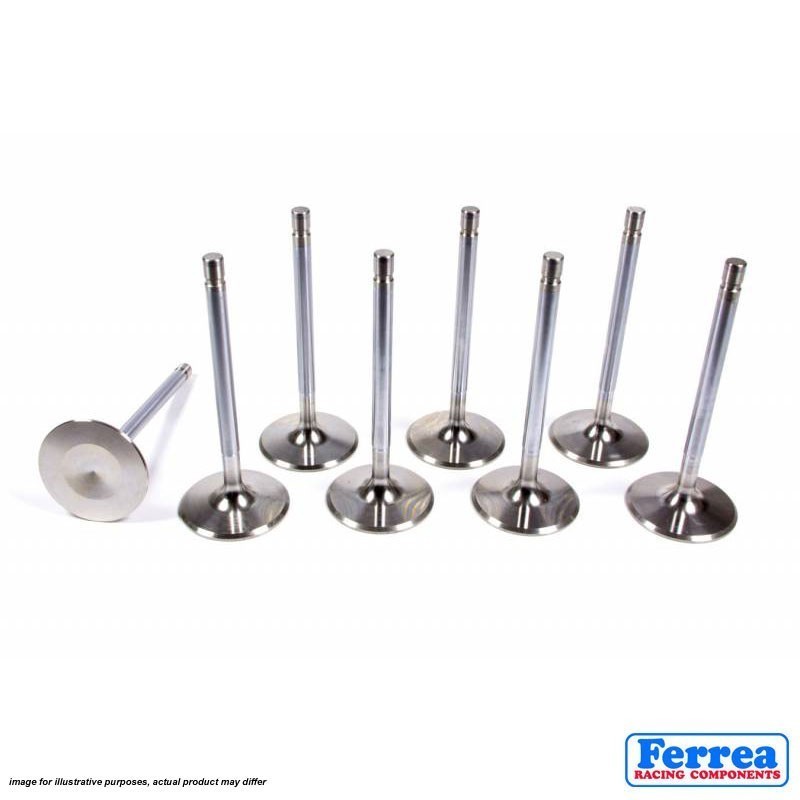

Ferrea super alloy exhaust valve
BMW / Toyota 3.0 24V Turbo (B58B30)
Head Diameter: 28.50 mm
Stem Diameter: 5.96 mm
Overall Length: 99.80 mm
Tip Length: 4.98 mm
Reference: 21 Taper Flo. Stock size. Triple Radial Groove. Super Alloy
The Super Alloy Engine valves represent the highest level of sophistication in valve technology. These valves are designed to handle the extreme heat requirements and punishment of today’s Nitro Fuels, Supercharged, Turbocharged, Nitrous Oxide, and Marine race motors.
Springs data:
Seat pressure - 77lbs @ 40.10mm
Open (lift) pressure - 180lbs @ 10mm
Spring coil bind - 27.00mm
Rate - 10.30lbs/mm
Max lift - 12.20mm
Outer spring outer diameter: 26.50mm
Outer spring inner diameter: 18.70mm
Inner spring outer diameter: 21.60mm
Inner spring inner diameter: 13.80mm
Set includes:
Dual springs: 24 pcs. SPR-FE20BE
Titanium retainers: 12 pcs. RET-BMB48/TE and 12 pcs. RET-BMB48/TI
|
Product detailed specification |
|
|
Model number |
TEVI-1058-HS/MCEVI-1400S-HS |
|
Head diameter |
30.10mm |
|
Stem diameter |
5.95mm |
|
Length |
100.10mm |
|
Material |
Sodium filled Inconel/Nimonic alloy |
|
Fits for |
BMW / Toyota - Supercharged B38 / B48 / B58 |
|
Product detailed specification |
|
|
Model number |
TIVN-1058/MCIVN-1400S |
|
Head diameter |
30.10mm |
|
Stem diameter |
4.96mm |
|
Length |
99.50mm |
|
Material |
Black nitrided stainless steel |
|
Fits for |
BMW / Toyota - Supercharged B38 / B48 / B58 |
Ferrea Competition Plus Valves have built a reputation as the industry's most reliable extreme duty valve. To manufacture the valves we use special aerospace quality alloys, including the EV8-Z18, which provides high tensile strength. An exclusive two-step slow forging process ensures proper grain flow and virtually eliminates any damage to thematerial structure. The valves are then heat-treated and stress-relieved over a 48-hour period, which is the crucial base of our molecular integrity. These valves feature avionics-quality hard chrome along with a specially applied hard tip.
