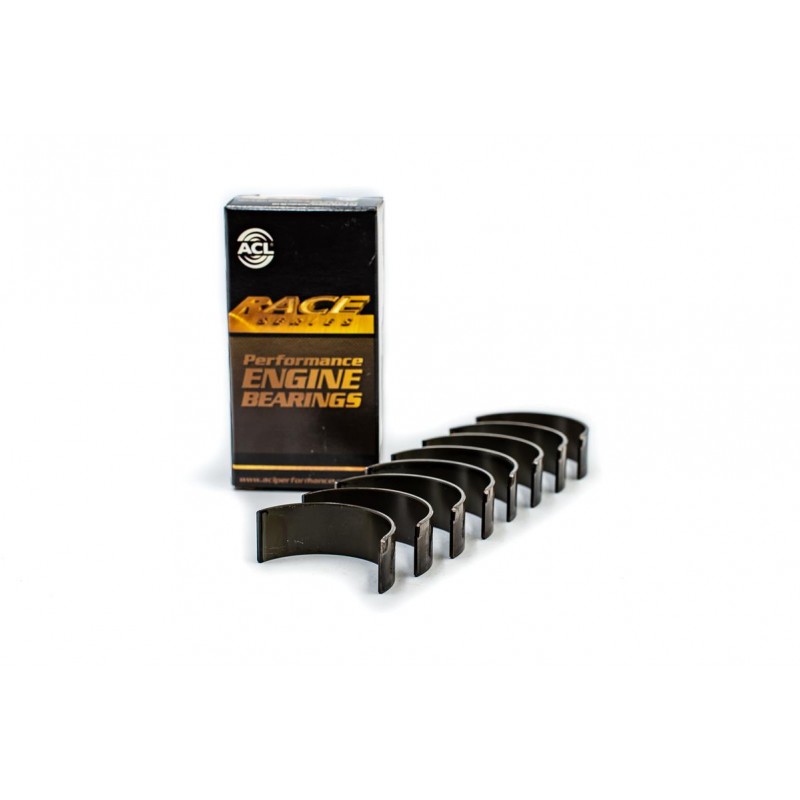

Honda 1.5 1.6 ACL Race connecting rod bearings 4B1956H-0.25

Part number 4B1956H-0.25
ACL Race Series connecting rod bearings
Honda - 1.5 1.6 (D16A6, D16Y5, D16Y7, D16Y8, D16Z6)

€69.00

Availibilty:1 items

Information

ENGINE BEARINGS
	CON ROD BEARING SET

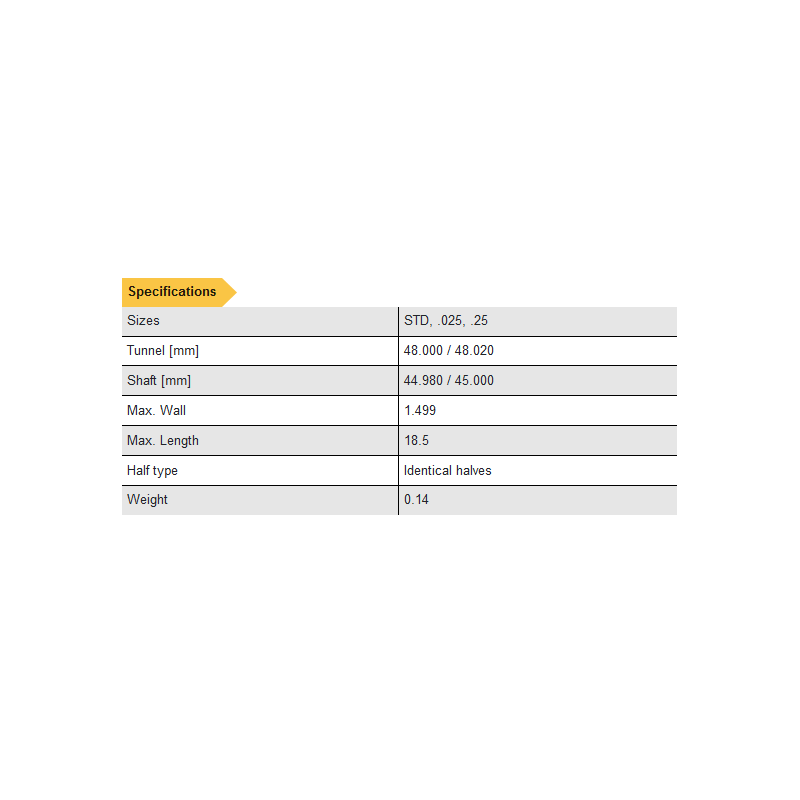

	Part#
	4B1956H	4B1956HX
Sizes	STD, 025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.7709in / 44.98mm
Max Std Shaft Size	1.7717in / 45mm
Min Std Tunnel Size	1.8898in / 48mm
Max Std Tunnel Size	1.8906in / 48.02mm
Max Wall at Crown	0.0592in / 1.504mm	0.0587in /1.491 mm
Max Overall Length	0.7283in / 18.5mm
Notes

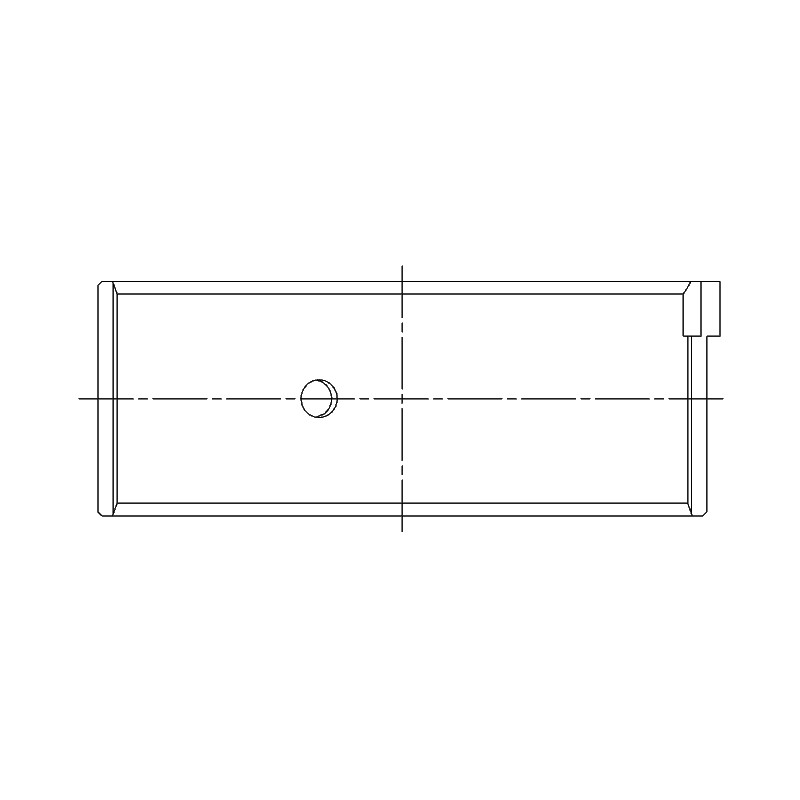

Diagram (Top View)

Engines Honda - 1.5 1.6 (D16A6, D16Y5, D16Y7, D16Y8, D16Z6)

Honda 1.5 1.6 ACL Race connecting rod bearings 4B1956H-STD

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1956H	4B1956HX
Sizes	STD, 025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.7709in / 44.98mm
Max Std Shaft Size	1.7717in / 45mm
Min Std Tunnel Size	1.8898in / 48mm
Max Std Tunnel Size	1.8906in / 48.02mm
Max Wall at Crown	0.0592in / 1.504mm	0.0587in /1.491 mm
Max Overall Length	0.7283in / 18.5mm
Notes
Diagram (Top View)

Engines Honda - 1.5 1.6 (D16A6, D16Y5, D16Y7, D16Y8, D16Z6)

€69.00

Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race main bearings 5M1957H-STD

Sizes	STD, .025, .25
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-Metal
Min. Std Shaft Size	2.1646in / 54.980mm
Max. Std Shaft Size	2.1654in / 55.000mm
Min. Std Tunnel Size	2.3228in / 59.000mm
Max. Std Tunnel Size	2.3236in / 59.020mm
Max Wall at Crown	0.0790in / 2.007mm
Max Overall Length	0.7874in / 20.00mm
Weight	0.28
Notes	0

€92.00

Honda 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 ACL thrust washers 1T1957-STD

Part number 1T1957-STD
ACL thrust washers kit
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)

€15.00

Honda 1.6 2.0 King Racing connecting rod bearings CR4046XPC-STD COATED

XP	XP

C4046	C4046

Quantity

Crankshaft

45.001 / 44.981

Housing

48.001 / 48.019

Max Wall

1.499

Max Length

18.499

Engines: Honda - 1.6 2.0 (D16A, D16B, D16Y5, D16Y7, D16Y8, D16Z6, ZC, B20B4, B20Z2)

€69.00

Honda MB5568XP 1.6 1.7 1.8 2.0 2.1 2.2 2.3 main bearings

Honda 1.6 1.7 1.8 2.0 2.1 2.2 2.3 King Racing main bearings MB5568XP-STD

XP	XP

M5568-PR	M5568-PR

Quantity

Crankshaft

55.001 / 54.981

Housing

58.999 / 59.019

Max Wall

1.999

Max Length

20.000

Engines: Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 (B18A (1834cc); B20A3, B20A4, B20A5, B20A7, B20A8, B20A9, B21A, B20A6 (1958cc); D16A3, D16A6, D16A7, D16A8, D16A9, D16Y1, D16Y4, D16Y5, D16Y7, D16Y8, D16Z2, D16Z5, D16W1 (1590cc), D17A, D17Z, F23A, F23Z, H22A, H22Z, B21A1)

€87.00

Honda 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 King Racing thrust washers TW140AM

Part number TW140AM
King Racing thrust washers kit
Honda - 1.6 1.7 1.8 2.0 2.1 2.2 2.3 2.4 (D16A, D16B, D16W, D16Y, D16Z, A18A, ES, ET, A20A, B16A, B17A1, B18A1, B18B1, B18B2, B18A, B20A SOHC, B18C1, B18C2, B18C5, B18C7, B20A, B21A, B21A1 DOHC, B20B, B20Z, D17A, D17Z, K20A3, K20A2, K20Z1, K24A, K24Z1, H22A, H22Z, F23A, F23Z)

€12.00

Honda 1.6 1.7 1.8 2.0 2.2 2.3 ACL Race main bearings 5M1957H-0.25

Sizes	STD, .025, .25
Oil Clearance	Standard
Half Type	Identical Halves
Material	Tri-Metal
Min. Std Shaft Size	2.1646in / 54.980mm
Max. Std Shaft Size	2.1654in / 55.000mm
Min. Std Tunnel Size	2.3228in / 59.000mm
Max. Std Tunnel Size	2.3236in / 59.020mm
Max Wall at Crown	0.0790in / 2.007mm
Max Overall Length	0.7874in / 20.00mm
Weight	0.28
Notes	0

€92.00

Honda 1.6 D16Y ARP cylinder head stud kit 208-4305

ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.

€212.00

ACL Race Series oil pump Honda B20B4, B18C1, B16A2, B20Z2 OPHD1194HP

ACL RACE Series performance oil pumps and passenger car oil pumps assure constant and
uninterrupted flow throughout the engine’s circulatory system, ensuring the lubrication
system does not miss a beat. ACL RACE Series oil pumps are designed with high output
and high volume capabilities featuring gerotor sets that are precision machined from steel
copper alloy material. Fine tolerances ensure optimum pressure and flow.
Performance Oil Pump features:
• Increased flow and pressure characteristics
• Individually inspected and tested to assure pressure and flow characteristics

RPM	Litres/Min	Gal/Min	Hi Volume Litres/Min	Hi Volume Gal/Min
600	5,6	1,48	6,83	1,8
3000	27,3	7,2	33,3	8,8
5000	32,7	8,64	39,9	10,54

€299.00
