BMW M50 / M52 / M54 / S52 - super damper installation kit with ATI DAMPER

If you're building a serious horsepower BMW engine, here's a proper solution to replace the old cranky damper wheel! No more broken harmonic balancers, loosen up crankshaft bolt or oil pump issues, a precise crank signal due to undamped solid trigger wheel. ATI / PCE super dampers are rebuildable and can be tuned with different hardness o-rings.

M52TU / M54 / S52, without trigger wheel

€899.00

Availibilty:1 items

Information

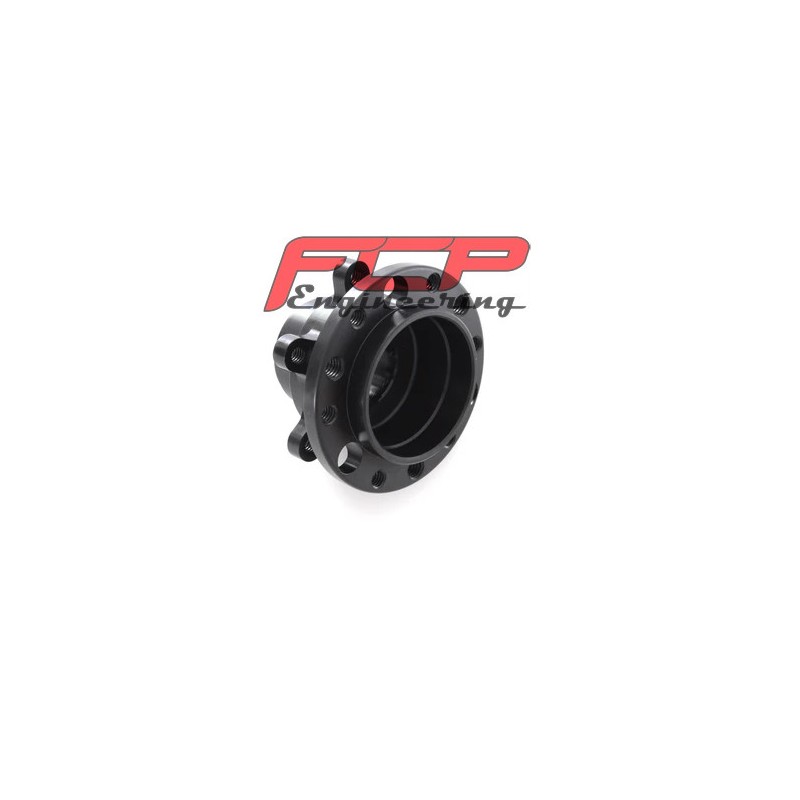

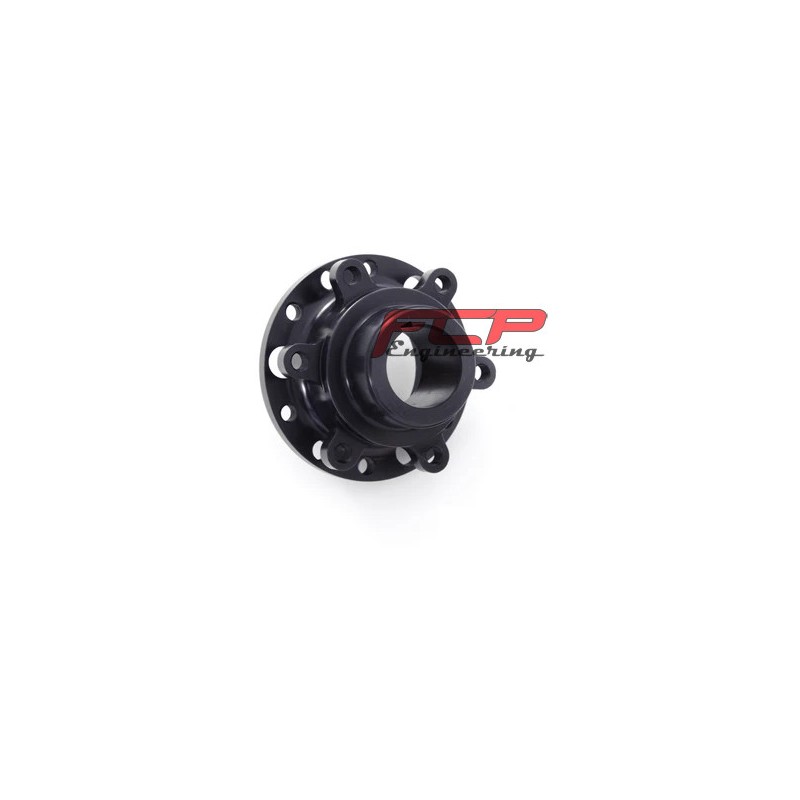

CrMo tool steel crankshaft hub to be used with ATI super damper
Lightweight 60-2 trigger wheel made of high tensile Domex steel

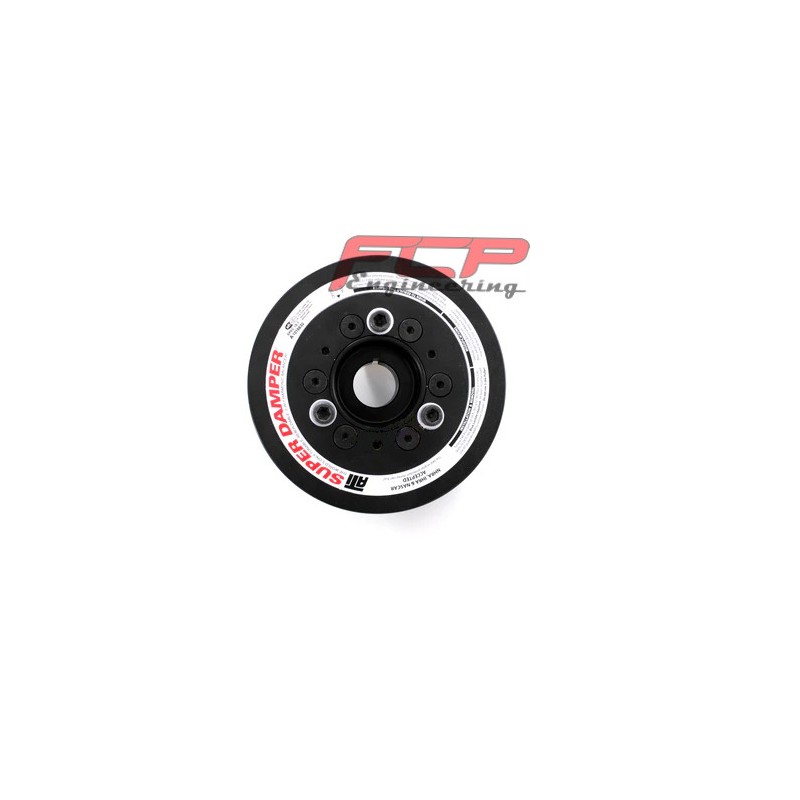

ATI super damper shown in the pictures is included
A/C pulley not compatible with the kit
Check/adjust the ignition timing after installing
Comes with mounting hardware

BMW M20 M50 M52 M54 S54 ACL Race main bearings 7M1532H-STD

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	7M1532H	7M1532HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal
Min Std Shaft Size	2.3611in / 59.971mm
Max Std Shaft Size	2.3618in / 59.990mm
Min Std Tunnel Size	2.5591in / 65.000mm
Max Std Tunnel Size	2.5598in / 65.019mm
Max Wall at Crown	0.0980in / 2.490mm	0.0930in / 2.478mm
Max Overall Length	0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust
Notes
Diagram (Top View)

Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (just for variant with two bearing locks), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)

€209.00

BMW M50 M52 girdle kit

Kit includes:

1 x girdle plate (6mm thickness)
14 x spacers
14 x 12.9 grade steel bolts

€299.00

BMW M50 M52 girdle kit with ARP studs

Part number: GPM50ARP

FCP Engineering support girdle kit including spacers and ARP bolts
Must be used for BMW M50 M52 600HP+ turbo engines.

FCP Engineering girdle kit is used to prevent main cap 'walking' and to generally strengthen the bottom end. Fixing the girdle to the engine block directly provides the best strength.

Kit includes:

1 x girdle plate (6mm thickness)
14 x spacers
14 x ARP studs

€499.00
