Part number 330141R

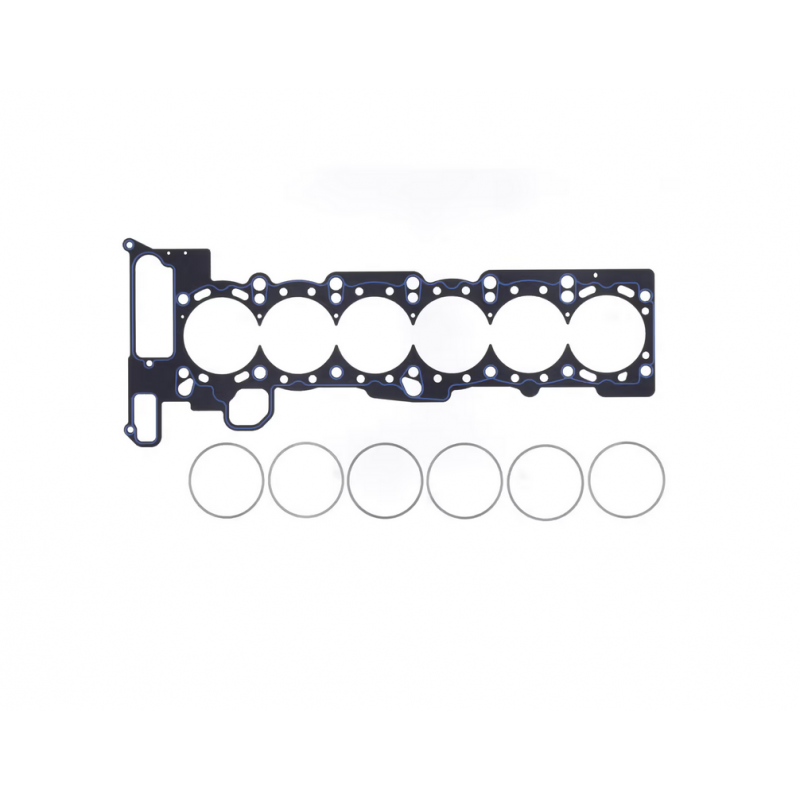

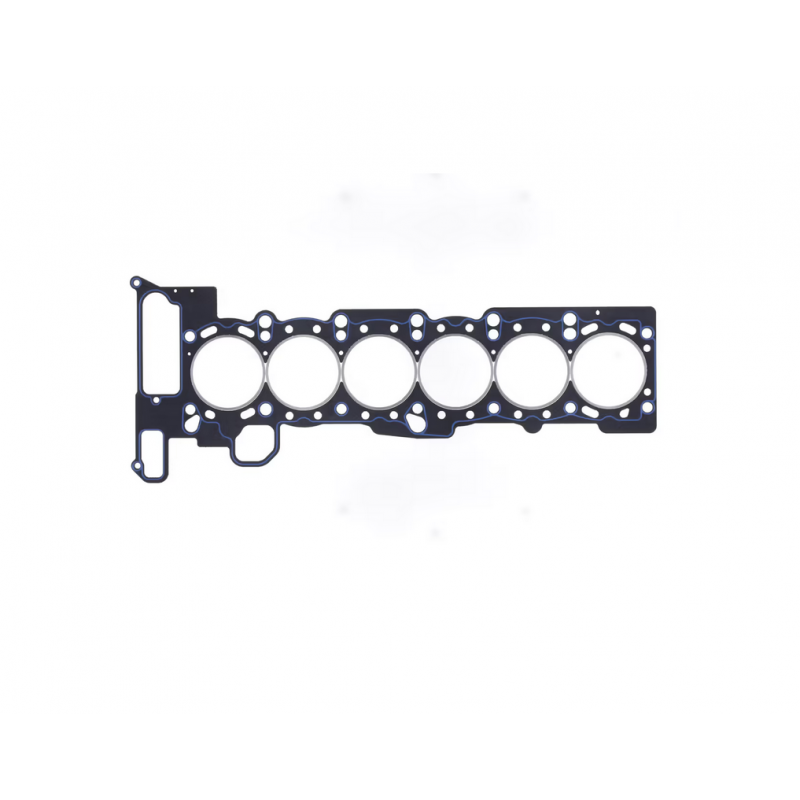

Athena Racing Cooper Ring cylinder head gasket 84.50x2mm
BMW - 2.5 2.8 3.0 (M54B25, M54B28, M54B30)
Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
|
Part number starting with 330 |
|
|
Athena advantages |
|
|
Reinforced material |
Asbestos free composite raw material OE approved |
|
Stainless steel ring (AISI304) |
Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required |
|
Silicon beading |
Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages |
Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHB1354822-6
Profile: H-beam
C to C: 135mm
Big end diameter: 48mm
Pin diameter: 22mm
Quantity: 6 pcs., 12 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 800HP (6 cylinder)
Advertised RPM rating: 9000RPM
BMW - 2.0 2.5 2.8 3.0 3.2 (M20B25, M50, M52, M54, S50 USA, S52 USA)
Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRXB1354822-6
Profile: X-beam
C to C: 135mm
Big end diameter: 48mm
Pin diameter: 22mm
Quantity: 6 pcs., 12 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 1200HP (6 cylinder)
Advertised RPM rating: 9000RPM
BMW - 2.0 2.5 2.8 3.0 3.2 (M50, M52, M54, S50 USA, S52 USA)
Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Part number: 330023R
Gasket thickness: 1.50mm
Bore size: 87.60mm
|
Part number starting with 330 |
|
|
Athena advantages |
|
|
Reinforced material |
Asbestos free composite raw material OE approved |
|
Stainless steel ring (AISI304) |
Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required |
|
Silicon beading |
Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages |
Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
|
Part number starting with 330 |
|
|
Athena advantages |
|
|
Reinforced material |
Asbestos free composite raw material OE approved |
|
Stainless steel ring (AISI304) |
Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required |
|
Silicon beading |
Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages |
|
Product detailed specification |
|
|
Bore size |
84.25mm |
|
Stroke |
89.60mm |
|
Wiseco compression ratio (CR) |
9.0:1 |
|
OEM compression ratio (CR) |
10.2:1 |
|
Dome volume (CC) |
-7.3cm3 |
|
Compression height (CH) |
28.32mm |
|
Pin diameter |
22mm |
|
Features |
Accepts Turbo and Nitrous; Full Round Skirt |
|
Fits for |
BMW E46, E39 - 3.0 24V (M54B30) |
|
Product detailed specification |
|
|
Bore size |
84.5mm |
|
Stroke |
89.60mm |
|
Wiseco compression ratio (CR) |
9.0:1 |
|
OEM compression ratio (CR) |
10.2:1 |
|
Dome volume (CC) |
-7.3cm3 |
|
Compression height (CH) |
28.32mm |
|
Pin diameter |
22mm |
|
Features |
Accepts Turbo and Nitrous; Full Round Skirt |
|
Fits for |
BMW E46, E39 - 3.0 24V (M54B30) |
|
Product detailed specification |
|
|
Bore size |
84.00mm |
|
Stroke |
89.60mm |
|
Wiseco compression ratio (CR) |
9.0:1 |
|
OEM compression ratio (CR) |
10.2:1 |
|
Dome volume (CC) |
-7.3cm3 |
|
Compression height (CH) |
28.32mm |
|
Pin diameter |
22mm |
|
Features |
Accepts Turbo and Nitrous; Full Round Skirt |
|
Fits for |
BMW E46, E39 - 3.0 24V (M54B30) |
Wiseco ArmorGlide skirt coating is a dry film lubricant applied to the piston skirt. This coating helps reduce friction, improving performance, and will also help quiet the piston in the cylinder bore. This coating is permanently applied, and is not a break in coating, it is on the piston for the life of the part.
Part number: FCPPB840090M54
Manufacturer: FCP Engineering
Forged high performance pistons for various applications in nearly all engine types for racing and street use.
Made of 4032-T6, piston skirt is molibden coated.
Each set of pistons also includes rings and HD series pins.
Bore size: 84.00mm
Compression ratio (CR): 9.0:1
Compression height: 30.50mm
Pin diameter: 22mm
Stroke: 89.60mm
BMW 330i, 530i (E46, E39) - 3.0 24V Turbo (M54B30)
Connecting rod length must be 135mm
Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!
Part number: FCPPB850090M54
Manufacturer: FCP Engineering
Forged high performance pistons for various applications in nearly all engine types for racing and street use.
Made of 4032-T6, piston skirt is molibden coated.
Each set of pistons also includes rings and HD series pins.
Bore size: 85.00mm
Compression ratio (CR): 9.0:1
Compression height: 30.50mm
Pin diameter: 22mm
Stroke: 89.60mm
BMW 330i, 530i (E46, E39) - 3.0 24V Turbo (M54B30)
Connecting rod length must be 135mm
Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 6B1490H |
6B1490HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7707in / 44.975mm |
|
| Max Std Shaft Size |
1.7713in / 44.991mm |
|
| Min Std Tunnel Size |
1.8898in / 48.000mm |
|
| Max Std Tunnel Size |
1.8904in / 48.016mm |
|
| Max Wall at Crown |
0.0588in / 1.493mm |
0.0583in / 1.481mm |
| Max Overall Length |
0.709in / 18.00mm |
|
| Notes | ||
|
Diagram |
 |
|
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 6B1490H |
6B1490HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7707in / 44.975mm |
|
| Max Std Shaft Size |
1.7713in / 44.991mm |
|
| Min Std Tunnel Size |
1.8898in / 48.000mm |
|
| Max Std Tunnel Size |
1.8904in / 48.016mm |
|
| Max Wall at Crown |
0.0588in / 1.493mm |
0.0583in / 1.481mm |
| Max Overall Length |
0.709in / 18.00mm |
|
| Notes | ||
|
Diagram |
|
|
Engines BMW - 2.0 2.3 2.5 2.7 2.8 3.0 (M20B20, M20B25, M20B27, M50B20,
M50B25, M50B27, M52B20, M52B25, M52B28, M54B25, M54B22, M54B30)
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 6B1490H |
6B1490HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7707in / 44.975mm |
|
| Max Std Shaft Size |
1.7713in / 44.991mm |
|
| Min Std Tunnel Size |
1.8898in / 48.000mm |
|
| Max Std Tunnel Size |
1.8904in / 48.016mm |
|
| Max Wall at Crown |
0.0588in / 1.493mm |
0.0583in / 1.481mm |
| Max Overall Length |
0.709in / 18.00mm |
|
| Notes | ||
|
Diagram |
|
|
Engines BMW - 2.0 2.3 2.5 2.7 2.8 3.0 (M20B20, M20B25, M20B27, M50B20,
M50B25, M50B27, M52B20, M52B25, M52B28, M54B25, M54B22, M54B30)
|
|||||||
| Quantity | 6 | ||||||
| Crankshaft | 44.991 / 44.973 | ||||||
| Housing | 48.001 / 48.016 | ||||||
| Max Wall | 1.491 | ||||||
| Max Length | 18.001 |
|
|||||||
| Quantity | 6 | ||||||
| Crankshaft | 44.991 / 44.973 | ||||||
| Housing | 48.001 / 48.016 | ||||||
| Max Wall | 1.491 | ||||||
| Max Length | 18.001 |
|
|
|||||||||||||
| Quantity | 1 | 6 | ||||||||||||
| Crankshaft | 59.990 / 59.972 | 59.990 / 59.972 | ||||||||||||
| Housing | 65.001 / 65.019 | 65.001 / 65.019 | ||||||||||||
| Max Wall | 2.494 | 2.494 | ||||||||||||
| Max Length | 24.940 | 19.901 |
|
|
|||||||||||||
| Quantity | 1 | 6 | ||||||||||||
| Crankshaft | 59.990 / 59.972 | 59.990 / 59.972 | ||||||||||||
| Housing | 65.001 / 65.019 | 65.001 / 65.019 | ||||||||||||
| Max Wall | 2.494 | 2.494 | ||||||||||||
| Max Length | 24.940 | 19.901 |
| ENGINE BEARINGS | ||
|
MAIN BEARING SET |
|
| Part# | ||
| 7M1532H |
7M1532HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-metal | |
| Min Std Shaft Size | 2.3611in / 59.971mm | |
| Max Std Shaft Size | 2.3618in / 59.990mm | |
| Min Std Tunnel Size | 2.5591in / 65.000mm | |
| Max Std Tunnel Size | 2.5598in / 65.019mm | |
| Max Wall at Crown | 0.0980in / 2.490mm | 0.0930in / 2.478mm |
| Max Overall Length |
0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust |
|
| Notes | ||
|
Diagram |
|
|
| ENGINE BEARINGS | ||
|
MAIN BEARING SET |
|
| Part# | ||
| 7M1532H |
7M1532HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-metal | |
| Min Std Shaft Size | 2.3611in / 59.971mm | |
| Max Std Shaft Size | 2.3618in / 59.990mm | |
| Min Std Tunnel Size | 2.5591in / 65.000mm | |
| Max Std Tunnel Size | 2.5598in / 65.019mm | |
| Max Wall at Crown | 0.0980in / 2.490mm | 0.0930in / 2.478mm |
| Max Overall Length |
0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust |
|
| Notes | ||
|
Diagram |
|
|
Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (just for variant with two bearing locks), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)
| ENGINE BEARINGS | ||
|
MAIN BEARING SET |
|
| Part# | ||
| 7M1532H |
7M1532HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-metal | |
| Min Std Shaft Size | 2.3611in / 59.971mm | |
| Max Std Shaft Size | 2.3618in / 59.990mm | |
| Min Std Tunnel Size | 2.5591in / 65.000mm | |
| Max Std Tunnel Size | 2.5598in / 65.019mm | |
| Max Wall at Crown | 0.0980in / 2.490mm | 0.0930in / 2.478mm |
| Max Overall Length |
0.787in / 20.00mm #1,2,3,4,5,7 0.982in / 24.94mm #6 thrust |
|
| Notes | ||
|
Diagram |
|
|
Engines BMW - 2.0 2.2 2.3 2.5 2.7 2.8 3.0 3.2 (M20 (just for variant with two bearing locks), M50B20, M52B20, M50B25, M52B25, M54B25, M54B30, M50B27, S50B30, S50B32, S52B32, S54B32)
|
Product detailed specification |
|
|
Model number |
BMEVI-1030S |
|
Head diameter |
30.50mm |
|
Stem diameter |
5.96mm |
|
Length |
105.65mm |
|
Material |
Inconel |
|
Fits for |
BMW - 1.8 2.5 2.8 3.0 (S42,M42,M50,S50,M52,S52,M54) |
|
Product detailed specification |
|
|
Model number |
BMEVN-1030 |
|
Head diameter |
30.50mm |
|
Stem diameter |
5.96mm |
|
Length |
105.65mm |
|
Material |
Black nitrided stainless steel |
|
Fits for |
BMW - 1.8 2.5 2.8 3.0 (S42,M42,M50,S50,M52,S52,M54) |
|
Product detailed specification |
|
|
Model number |
BMEVI-1031S |
|
Head diameter |
31.50mm |
|
Stem diameter |
5.96mm |
|
Length |
105.65mm |
|
Material |
Inconel |
|
Fits for |
BMW - 1.8 2.5 2.8 3.0 (S42,M42,M50,S50,M52,S52,M54) |
|
Product detailed specification |
|
|
Model number |
BMIVN-1030 |
|
Head diameter |
33.00mm |
|
Stem diameter |
5.97mm |
|
Length |
106.10mm |
|
Material |
Black nitrided stainless steel |
|
Fits for |
BMW - 1.8 2.5 2.8 3.0 (S42,M42,M50,S50,M52,S52,M54) |
ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.
Spring data:
Seat pressure - 94lbs @ 35.70mm
Open (lift) pressure - 209lbs @ 10mm
Spring coil bind - 20.70mm
Rate - 11.50lbs/mm
Max lift - 15.00mm
Outer spring outer diameter: 29.65mm
Outer spring inner diameter: 21.85mm
Inner spring outer diameter: 20.50mm
Inner spring inner diameter: 15.50mm
Set includes:
Dual springs: 24 pcs. SPR-H1005D-BM
Titanium retainers: 24 pcs. RET-AU5VE-T1
Seats: 24 pcs. SEAT-BM60
