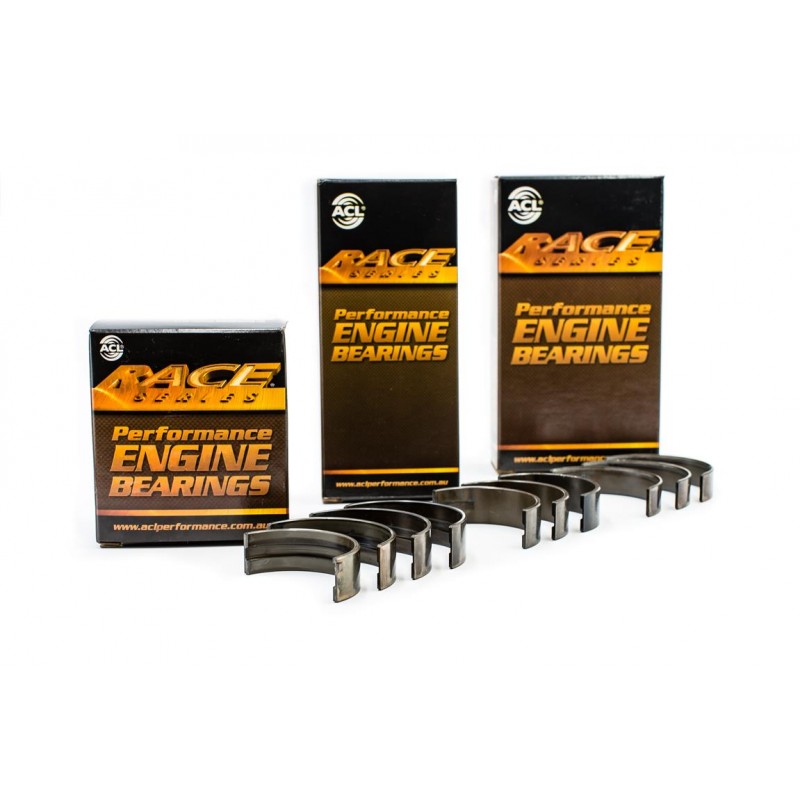

Nissan RB20 RB25 RB30 ACL Race main bearings 7M2394H-STD

Part number 7M2394H-STD
ACL Race Series main bearings
Nissan - 2.0, 2.5, 2.8, 3.0 (RB20E, RB20DE, RB20DET, RB25DE, RB25DETT, RB30E, RB30ET, RD28, RD28E, RD28T)
€179.00
Availibilty:2 items

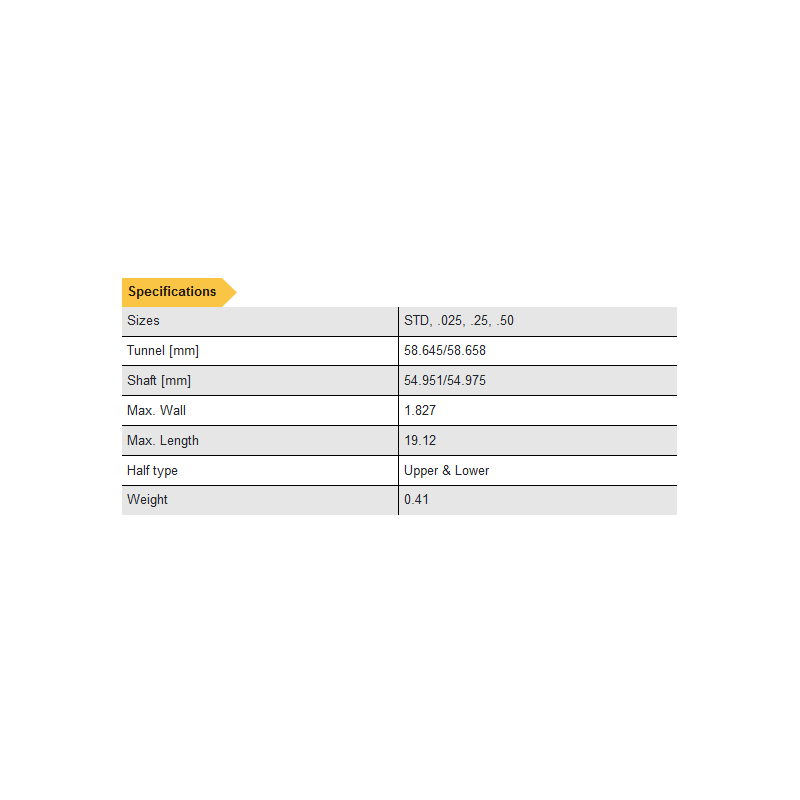

Information
Sizes STD, .025, .25, .50
Oil Clearance Standard
Half Type Upper & Lower
Material Tri-Metal
Min. Std Shaft Size 2.1634in / 54.951mm
Max. Std Shaft Size 2.1644in / 54.975mm
Min. Std Tunnel Size 2.3089in / 58.645mm
Max. Std Tunnel Size 2.3094in / 58.658mm
Max Wall at Crown 0.0719in / 1.827mm
Max Overall Length 0.7528in / 19.12mm    (2394H/HX) 1.061in / 26.95mm      (2395H/HX - Flange)
Weight 0.41
Notes Flange in Position 4
