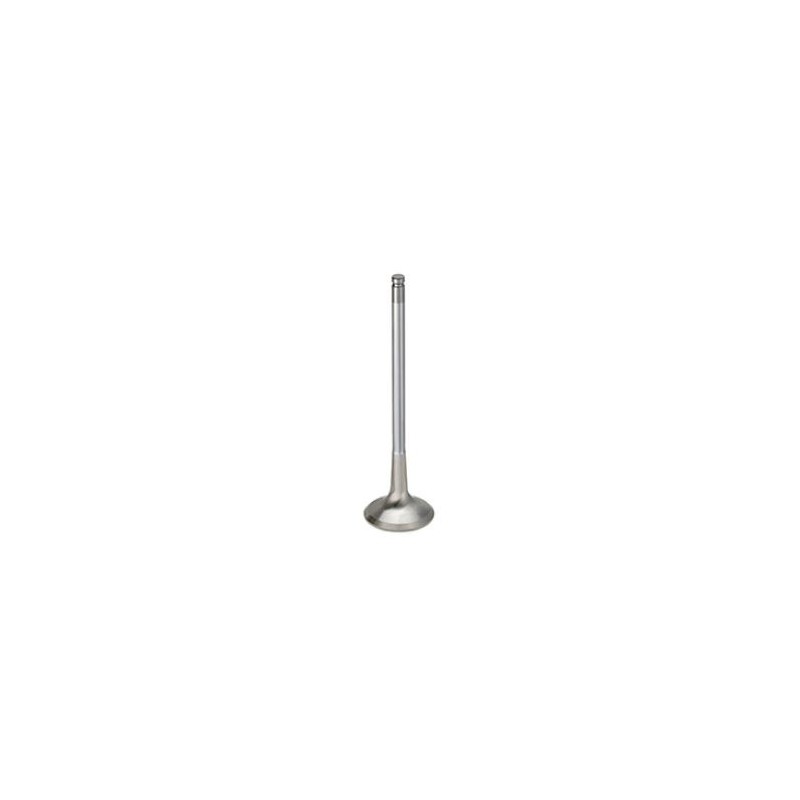

BMW M3 E46 3.0 S54B32 Supertech inconel exhaust valve BMEVI-1040S STD

Audi / VW / BMW Supertech 6mm single groove valve keeper / lock

Audi / VW / BMW / Opel / Renault Supertech 6mm single groove valve...

Part number KPR-6S-7
Supertech 6mm single groove valve keeper (lock)
Price is for 1 pc. (2 pcs. needed for one valve)
For:
Renault Megane - 2.0 16V (F4RT)
Opel / Vauxhall - 2.0 16V (Z20LET/LEH)
Audi / VW - 1.8T 2.4 2.7T 2.8 3.0 (5V/cyl.)
BMW - M42, S42, M50, M52, M54, S50 (USA), S52 (USA), S54
Toyota - 3.0 2JZGTE 2JZGE

€3.00

Audi / VW / BMW / Opel Supertech 6mm exhaust valve seal VS-VBM6E

Part number VS-VBM6E.
Supertech exhaust valve seal for 6mm valve stem.
For:
Opel / Vauxhall - 2.0 16V (Z20LET/LEH)
Audi / VW - 1.8T 2.4 2.7T 2.8 3.0 (5V/cyl.)
BMW - M42, S42, M50, M52, M54, S50 (USA), S52 (USA), S54

€2.50

Audi / VW / BMW / Opel Supertech 6mm intake valve seal VS-VBM6I

Part number VS-VBM6I.
Supertech intake valve seal for 6mm valve stem.
For:
Opel / Vauxhall - 2.0 16V (Z20LET/LEH)
Audi / VW - 1.8T 2.4 2.7T 2.8 3.0 (5V/cyl.)
BMW - M42, S42, M50, M52, M54, S50 (USA), S52 (USA), S54

€2.50

BMW BMEVN-1040 Standard S54B32 3.2 exhaust valve

BMW 3.2 S54B32 Supertech exhaust valve BMEVN-1040 STD

Product detailed specification
Model number	BMEVN-1040
Head diameter	30.50mm
Stem diameter	5.95mm
Length	126.10mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

€32.00

BMW 3.2 S54B32 Supertech intake valve BMIVN-1040 STD

Product detailed specification
Model number	BMIVN-1040
Head diameter	35.00mm
Stem diameter	5.97mm
Length	117.50mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

€35.00

BMW M3 E46 3.2 S54B32 24V FCP racing valve spring set

Valve springs data
Installed seat pressure - 40kg (88lbs)
Load - 100kg@12mm (220lbs@12mm)
Max lift - up to 13mm,
Made from chrome-silicon steel SAE9254-V
24 pcs. valve double springs
Fits BMW M3 - 3.2 24V (S54B32)
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7500 RPM.
Can be used together with standard retainers and seats.

€399.00

BMW M3 E46 3.2 S54B32 Ajusa cylinder head gasket set 52191700

Set includes:
1 cylinder head gasket (87.50x0.60mm)
1 valve cover gasket
6 intake manifold gaskets
6 exhaust manifold gaskets
24 valve seals
and etc.

Fits for:
BMW M3 E46 - 3.2 (S54B32)

€299.00

BMW M3 E46 3.2 S54B32 ARP cylinder head stud kit 201-4303

ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.

€357.00

BMW 3.2 S54B32 Athena Racing head gasket 87.50x1.2mm 330037R

BMW M3 E46 3.2 S54B32 Athena Cooper Ring cylinder head gasket 87.5x1.2mm 330037R

Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Part number 330037R
Gasket thickness: 1.20mm
Bore size: 87.50mm

Part number starting with 330
Athena advantages
Reinforced material	Asbestos free composite raw material OE approved
Stainless steel ring (AISI304)	Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required
Silicon beading	Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages

€325.00

BMW BMEVI-1040S standard S54B32 3.2 exhaust valve

BMW M3 E46 3.2 S54B32 Supertech exhaust valve BMEVI-1045S +1mm

Product detailed specification
Model number	BMEVI-1045S
Head diameter	31.50mm
Stem diameter	5.95mm
Length	119.10mm
Material	Inconel
Fits for	BMW M3 E46 - 3.2 (S54B32)

€49.00

BMW BMEVN-1031S +1mm 1.8/2.5/2.8/3.0 exhaust valves

BMW M3 E46 3.2 S54B32 Supertech intake valve BMIVN-1040S STD

Product detailed specification
Model number	BMIVN-1040S
Head diameter	35.00mm
Stem diameter	5.97mm
Length	117.50mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

€34.00

BMW M3 E46 3.2 S54B32 Supertech valve spring set SPRK-2521-2BM-T1

Spring data:
Seat pressure - 82lbs @ 41.00mm
Open (lift) pressure - 186lbs @ 10.00mm
Spring coil bind - 25.50mm
Max lift - 15.50mm
Rate - 10.00mm
Outer spring outer diameter - 26.40mm
Outer spring inner diameter - 19.30mm
Inner spring outer diameter - 19.30mm
Inner spring inner diameter - 14.50mm

Set includes:
Double springs - 24 pcs. SPR-2521-BM
Titanium retainers - 24 pcs. RET-BM2521-T1
Seats - 24 pcs. SEAT-BMS54

€1,100.00

BMW M3 E46 S54B32 Supertech high RPM valve and valve spring kit

This is a set of Supertech valve springs, titanium retainers, valves and lash caps for BMW S54B32 Engine. This kit will reliably allow your engine to rev up to 9000rpm and eliminates the risk of OEM valve shim failure, valve float, or coil bind.
Aftermarket valve springs are made out of superior metal alloy's and optimized spring rates to make sure your valve train can keep up with your cams at high RPM. Whether you are rebuilding your engine, or building an all out race engine, replacing your valve train with Supertech components will allow you to rev higher, and go more aggressive on your cams.

€2,299.00

BMW M3 E46 S54B32 Supertech valve guide GDE-BMW-S54-EI

€10.00

BMW S54B32 Victor Reinz M11 cylinder head bolt kit 14-32312-01

Part number 14-32312-01
Victor Reinz cylinder head bolt kit (M11)
BMW S54B32

€39.00

Cometic BMW M3 E46 3.2 S54B32 MLS cylinder head gasket 87.5x1.52mm C4505-060

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

€289.00

Cometic BMW M3 E46 3.2 S54B32 MLS cylinder head gasket 87.5x1mm C4505-040

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

€249.00

Cometic BMW M3 E46 3.2 S54B32 MLS cylinder head gasket 87.5x2.34mm C4505-092

COMETIC MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for today's high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flouroelastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

€299.00

Product detailed specification
Model number	BMEVI-1040S
Head diameter	30.50mm
Stem diameter	5.95mm
Length	119.10mm
Material	Black nitrited stainless steel
Fits for	BMW M3 E46 - 3.2 (S54B32)

BMW M3 E46 3.0 S54B32 Supertech inconel exhaust valve BMEVI-1040S STD
