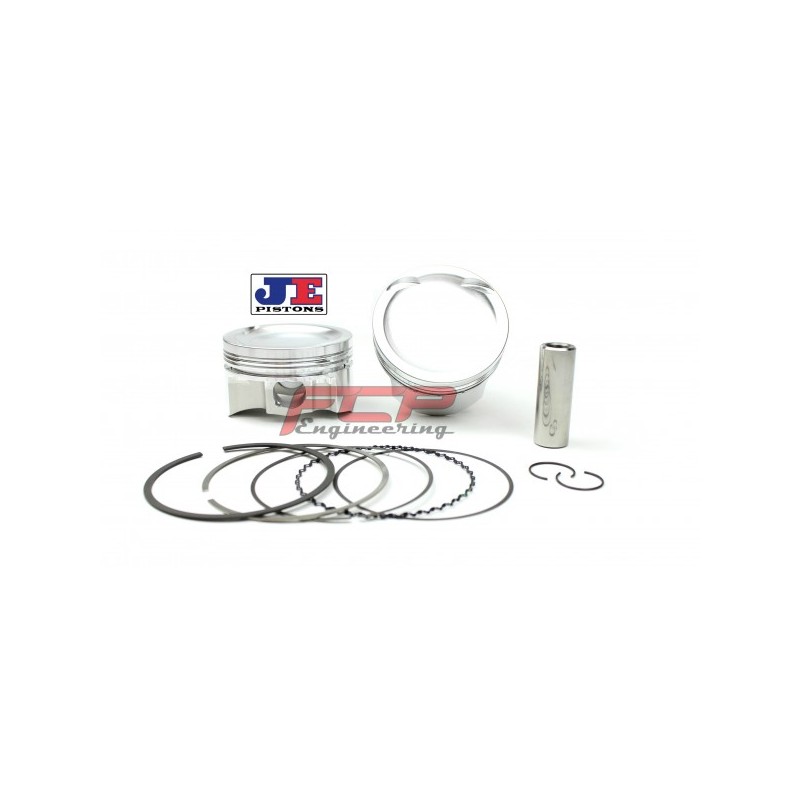

VW 2.0 16V 9A JE Pistons kit CR 12.8 83.5mm 332883C

Part number 332883C
JE Pistons forged piston kit (4 pcs.) 83.50mm CR 12.8:1
VW - 2.0 16V (9A)

€1,099.00

Availibilty:0 items

Information

Product detailed specification
Bore size	83.50mm
Stroke	92.80mm
JE Pistons compression ratio (CR)	12.8:1
OEM compression ratio (CR)	10.5:1
Dome volume (CC)	8.9cm³
Compression height (CH)	29.59mm
Pin diameter	20mm
Features	Coated FSR series skirt
Fits for	VW - 2.0 16V 9A

Audi / VW 1.8 2.0 KR PL, 16V 1.8T 20V FCP H-beam steel connecting rods...

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHA14450620-4
Profile: H-beam
C to C: 144mm
Big end diameter: 50.6mm
Pin diameter: 20mm
Quantity: 4 pcs., 8 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600HP (4 cylinder)
Advertised RPM rating: 9000RPM
Audi / VW / Seat / Skoda:
1.8T 20V (AEB, BAM, AWB and others)
1.8 2.0 16V (KR, PL, 9A)

€439.00

Audi / VW 1.6 1.8 2.0 ACL Race connecting rod bearings 4B1606H-STD

ENGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B1606H	4B1606HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Identical Halves
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.8802" /47.758mm
Max Std Shaft Size	1.8810" /47.778mm
Min Std Tunnel Size	1.9921" /50.600mm
Max Std Tunnel Size	1.9929" /50.619mm
Max Wall at Crown	0.0553" / 1.405mm	0.0548" /1.392mm
Max Overall Length	0.748" / 19.00mm
Notes	Bearing has 1.65mm oil hole at crown
Diagram (Top View)

Engines Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications, 1983-2003)

€72.00

VW/Audi 1.8 16V KR PL 2.0 16V 9A ACE racing valve spring kit + titanium retainers

VW / Audi 1.8 2.0 16V KR PL 9A FCP valve spring and retainer kit

Valve springs data
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome silicone steel SAE9254-V
Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm
16 pcs. outer springs
16 pcs. inner springs
16 pcs. titanium retainers
Fits all 4 cylinder 1.8 2.0 16V VW / Audi engines KR, PL, 9A.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7600 RPM.
Titanium retainers are very strong and light, they help to eliminate valve float. Weight is only 10g.

€399.00

VW / Audi 1.8 2.0 16V KR PL 9A ABF FCP valve double springs kit

VW / Audi 1.8 2.0 16V KR PL 9A ABF ACE FCP valve spring set

Valve springs data
Installed seat pressure - 38kg
Load - 100kg@12.5mm
Max. lift - up to 13mm
Made from chrome silicone steel SAE9254-V
Outer spring outer diameter: 30.50mm
Outer spring inner diameter: 23.20mm
Inner spring outer diameter: 21.20mm
Inner spring inner diameter: 16.20mm
16 pcs. outer springs
16 pcs. inner springs
Fits all 4 cylinder 1.8 2.0 16V VW / Audi engines KR, PL, 9A, ABF, ACE.
With this set the risk of valve flutter and a possible engine failure is minimized.
Recommended for engines with series and racing camshafts and over 7600 RPM.
Can also be used together with standard or FCP titanium retainers.

€199.00

Audi / VW 1.8-2.0 16V KR PL ABF 9A Victor Reinz cylinder head gasket 61-29305-00

Part number 61-29305-00
Victor Reinz cylinder head gasket set
For VAG engines:
Audi 80, 100, A6, Coupe - 2.0 16V (6A, AAE, AAD, ABK, ACE)
Seat Cordoba, Ibiza - 2.0 8V (2E, AGG), 2.0 16V (ABF)
VW Corrado, Golf, Passat, Sharan, Vento - 2.0 8V (2E, ABA, ADY, AEP, AKR, AGG, ATM), 2.0 16V (9A, ABF)

€39.00

VW 2.0 16V 9A JE Pistons kit CR 8.5 83mm 301937

Product detailed specification
Bore size	83.00mm
Stroke	92.80mm
JE Pistons compression ratio (CR)	8.5:1
OEM compression ratio (CR)	10.5:1
Dome volume (CC)	-15cm³
Compression height (CH)	29.59mm
Pin diameter	20mm
Features	Accepts Turbo and Nitrous; coated FSR series skirt
Fits for	VW - 2.0 16V 9A

€899.00

VW 2.0 16V 9A JE Pistons kit CR 12.8 83.5mm 332883C
