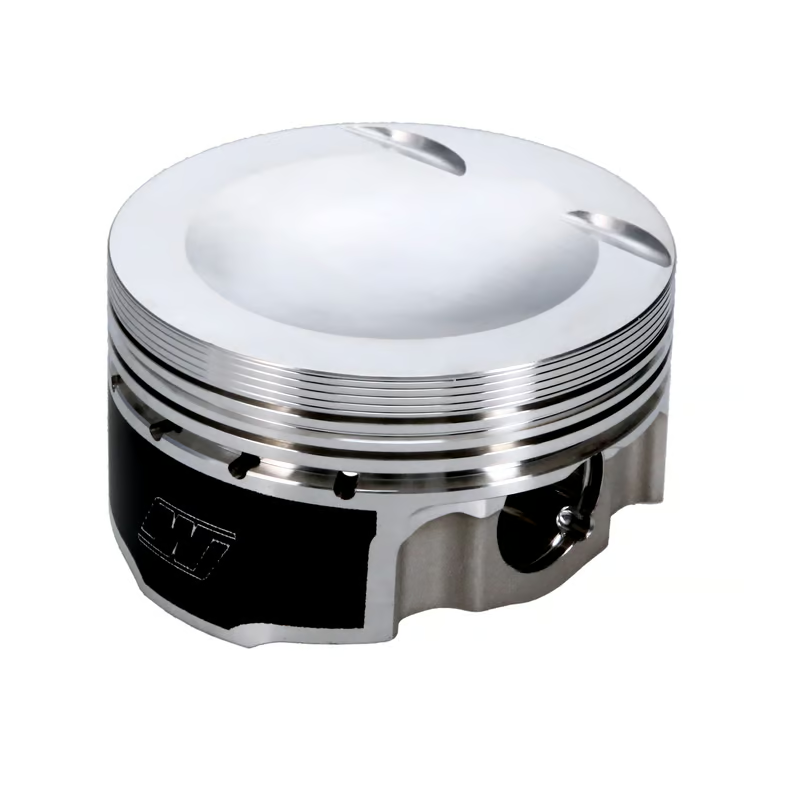

Audi TTRS 2.5 20V TFSI Wiseco pistons CR 9.2 82.50mm K743M825
Audi TTRS 2.5 20V TFSI Wiseco pistons CR 9.2 82.50mm K743M825

Audi TTRS 2.5 20V TFSI Wiseco pistons CR 9.2 82.50mm K743M825

Part number K743M825
Wiseco forged piston kit (5 pcs.) 82.50mm CR 9.2:1
Audi TTRS - 2.5 20V Turbo (CEPA, CEPB)
€999.00
Availibilty:0 items
Out of stock
Information

Product detailed specification

Bore size

82.50mm

Stroke

92.80mm

Wiseco compression ratio (CR)

9.2:1

OEM compression ratio (CR)

10.0:1

Dome volume (CC)

-9.50cm3

Compression height (CH)

29.60mm

Pin diameter

22mm

Features

Accepts Turbo and Nitrous

Fits for

Audi TTRS 2.5 20V TFSI

You might also like

Audi/VW AIVN-1103S Standard 1.8/1.8T/2.4/2.7T/2.8/3.0 5V intake valve
Audi / VW 2.0 16V TSI TFSI Supertech intake valve VWIVN-1004S +1mm

Product detailed specification

Model number

VWIVN-1004S

Head diameter

34.85mm

Stem diameter

5.98mm

Length

103.9mm

Material

Black nitrided stainless steel

Fits for

Audi / VW - 2.0 16V TSI TFSI (EA113, EA888)
€34.00
Audi/VW AEVI-1103S Standard 1.8/1.8T/2.4/2.7T/2.8/3.0 5V exhaust valve
Audi / VW 2.0 16V TSI TFSI, TT RS 2.5 20V Supertech exhaust valve VWEVI-1006S...

Product detailed specification

Model number

VWEVI-1006S

Head diameter

30.00mm

Stem diameter

5.96mm

Length

101.80mm

Material

Inconel

Fits for

Audi / VW - 2.0 16V TSI TFSI, 2.5 20V
€47.00
More Info
Audi/VW AIVN-1103S Standard 1.8/1.8T/2.4/2.7T/2.8/3.0 5V intake valve
Audi / VW 2.0 16V TSI TFSI, TT RS 2.5 20V Supertech intake valve VWIVN-1002S STD

Product detailed specification

Model number

VWIVN-1002S

Head diameter

33.85mm

Stem diameter

5.98mm

Length

103.90mm

Material

Black nitrided stainless steel

Fits for

Audi / VW - 2.0 16V TSI TFSI, 2.5 20V
€32.00
Audi TT RS 2.5 20V TFSI ARP cylinder head stud kit 204-CEPA
Audi TT RS 2.5 20V TFSI ARP cylinder head stud kit 204-CEPA
ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.
€347.00
Audi TT RS 2.5 20V TFSI Athena Cooper Ring cylinder head gasket 84x1.4m 330072R
Audi TT RS 2.5 20V TFSI Athena Cooper Ring cylinder head gasket 84x1.4m 330072R
Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Part number 330072R
Gasket thickness: 1.40mm
Bore size: 84.00mm

Part number starting with 330

Athena advantages

Reinforced material

Asbestos free composite raw material OE approved

Stainless steel ring (AISI304)

Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required

Silicon beading

Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages
€275.00
Audi TT RS 2.5 20V TFSI DAZA ARP cylinder head stud kit 204-4708
Audi TT RS 2.5 20V TFSI DAZA ARP cylinder head stud kit 204-4708
ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.
€425.00
Audi TT RS 2.5 20V TFSI DAZA Athena Cooper Ring cylinder head gasket 83.5x1.4m 330117R
Audi TT RS 2.5 20V TFSI DAZA Athena Cooper Ring cylinder head gasket...
Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Part number 330117R
Gasket thickness: 1.40mm
Bore size: 83.50mm

Part number starting with 330

Athena advantages

Reinforced material

Asbestos free composite raw material OE approved

Stainless steel ring (AISI304)

Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required

Silicon beading

Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages
€299.00
Audi TTRS 2.5 20V TFSI JE Pistons kit CR 9.5 82.50mm 337966
Audi TTRS 2.5 20V TFSI JE Pistons kit CR 9.5 82.50mm 337966

Product detailed specification

Bore size

82.50mm

Stroke

92.80mm

JE Pistons compression ratio (CR)

9.5:1

OEM compression ratio (CR)

10.0:1

Dome volume (CC)

-7.50cm3

Compression height (CH)

29.60mm

Pin diameter

22mm

Features

Accepts Turbo and Nitrous; FSR Series skirt

Fits for

Audi TTRS 2.5 20V TFSI

JE's patented Perfect Skirt coating makes piston slap, false knock, and cold-start wear a thing of the past.
For the first time ever, 2618-alloy pistons can be installed with piston-to-wall clearances near that of an OEM piston!

€1,099.00
Audi TTRS 2.5 20V TFSI valve spring and titanium retainer kit
Audi TTRS 2.5 20V TFSI valve spring and titanium retainer kit
Spring data:
Seat pressure - 70lbs @ 38.40mm (intake), 82lbs @ 37.00mm (exhaust)
Open (lift) pressure - 172lbs @ 10mm (intake), 180lbs @ 10mm (exhaust)
Max lift - 11.90mm (intake), 10.60mm (exhaust)
Spring coil bind - 24.90mm
Rate - 10.20lbs/mm
Spring outer diameter - 24.00mm
Spring inner diameter - 16.50mm

Set includes:
Single springs - 20 pcs.
Titanium retainers - 20 pcs.
€549.00
More Info
Audi TTRS 2.5 20V TFSI Wiseco pistons CR 9.2 83mm K743M83
Audi TTRS 2.5 20V TFSI Wiseco pistons CR 9.2 83mm K743M83

Product detailed specification

Bore size

83.00mm

Stroke

92.80mm

Wiseco compression ratio (CR)

9.2:1

OEM compression ratio (CR)

10.0:1

Dome volume (CC)

-9.50cm3

Compression height (CH)

29.60mm

Pin diameter

22mm

Features

Accepts Turbo and Nitrous

Fits for

Audi TTRS 2.5 20V TFSI


€999.00
Audi TTRS RS3 2.5 20V TFSI FCP H-beam steel connecting rods 144mm/22mm for aftermarket pistons
Audi TTRS RS3 2.5 20V TFSI FCP H-beam steel connecting rods 144mm/22mm for...

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHA14450622-5
Profile: H-beam
C to C: 144mm
Big end diameter: 50.6mm
Pin diameter: 22mm
Quantity: 5 pcs., 10 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 700HP (5 cylinder)
Advertised RPM rating: 9000RPM

€539.00
Audi TTRS RS3 2.5 20V TFSI FCP X-beam steel connecting rods 144mm/22mm for aftermarket pistons
Audi TTRS RS3 2.5 20V TFSI FCP X-beam steel connecting rods 144mm/22mm for...

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRXA14450622-5
Profile: X-beam
C to C: 144mm
Big end diameter: 50.6mm
Pin diameter: 22mm
Quantity: 5 pcs., 10 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 1000+HP (5 cylinder)
Advertised RPM rating: 9000RPM

€719.00
Audi/VW AEVI-1103S Standard 1.8/1.8T/2.4/2.7T/2.8/3.0 5V exhaust valve
Audi/VW 2.0 16V TSI TFSI, TT RS 2.5 20V Supertech Inconel exhaust valve...

Product detailed specification

Model number

VWEVI-1002S

Head diameter

28.00mm

Stem diameter

5.96mm

Length

101.80mm

Material

Inconel

Fits for

Audi / VW - 2.0 16V TSI TFSI, 2.5 20V
€46.00
Boostline Conrod Set Audi 2.5L TFSI TT RS 20V 144mm 22mm CA625+ VW5670-866+
Boostline Conrod Set Audi 2.5L TFSI TT RS 20V 144mm 22mm CA625+ VW5670-866+
  • Purpose-Built For Boost High Boost and Nitrous Audi TT RS Applications with 22mm Pin
  • Forged From Ultra-Strong 4340 Steel
  • Patented Three-Pocket Design
  • Capable of 1000+ HP
  • 3/8 x 1.600 in. ARP CA625+ Fasteners
  • High Quality APMCO Bronze Pin Bushing
  • 26 Point Detailed CMM Inspection Report Included
€1,999.00
Boostline Conrod Set Audi 2.5L TFSI TT RS 20V 144mm 22mm VW5670-866
Boostline Conrod Set Audi 2.5L TFSI TT RS 20V 144mm 22mm VW5670-866
  • Purpose-Built For Boost High Boost and Nitrous Audi TT RS Applications with 22mm Pin
  • Forged From Ultra-Strong 4340 Steel
  • Patented Three-Pocket Design
  • Capable of 1000+ HP
  • 3/8 x 1.600 in. ARP 2000 Fasteners
  • High Quality APMCO Bronze Pin Bushing
  • 26 Point Detailed CMM Inspection Report Included
€1,499.00
Cometic Audi TTRS / RS3 2.5L 20V TFSI MLX cylinder head gasket 83.5x1.4mm C14145-055
Cometic Audi TTRS / RS3 2.5L 20V TFSI MLX cylinder head gasket 83.5x1.4mm...
COMETIC MLX (Multi-Layer Stopper) gaskets utilize an integrated stopper layer for combustion chamber sealing and improved clamp load around the cylinder without increasing bore distortion. MLX technology can be found in some head gaskets and are made from the same materials as our MLS Head Gaskets. No sealants or re-torque required.
€249.00
VW JETTA 2.5 20V TFSI Supertech intake valve VWIVN-1001S STD
VW JETTA 2.5 20V TFSI Supertech intake valve VWIVN-1001S STD

Product detailed specification

Model number

VWIVN-1001S

Head diameter

33.00mm

Stem diameter

5.98mm

Length

103.90mm

Material

Black nitrided stainless steel

Fits for

VW Jetta - 2.5 20V
€31.00
More Info
VW/Audi TT RS 2.5 20V TFSI Supertech valve springs set SPRK-A2416-5
VW Rabitt / Audi TT RS 2.5 20V TFSI Supertech valve spring kit SPRK-A2416-5

Spring data:
Seat pressure - 73lbs @ 38.60mm (intake), 85lbs @ 37.20mm (exhaust)
Open (lift) pressure - 178lbs @ 10mm (intake), 109lbs @ 10mm (exhaust)
Max lift - 12.50mm (intake), 11.00mm (exhaust)
Spring coil bind - 24.90mm
Rate - 10.50lbs/mm
Spring outer diameter - 24.00mm
Spring inner diameter - 16.50mm

Set includes:
Single springs - 20 pcs. SPR-A2416-5
Titanium retainers - 20 pcs. RET-A2416-N2

€690.00
VW Rabitt / Audi TT RS 2.5 20V TFSI Supertech valve spring set SPR-A2416-5
VW Rabitt / Audi TT RS 2.5 20V TFSI Supertech valve spring set SPR-A2416-5

Spring data:
Seat pressure - 73lbs @ 38.60mm (intake), 85lbs @ 37.20mm (exhaust)
Open (lift) pressure - 178lbs @ 10mm (intake), 109lbs @ 10mm (exhaust)
Max lift - 12.50mm (intake), 11.00mm (exhaust)
Spring coil bind - 24.90mm
Rate - 10.50lbs/mm
Spring outer diameter - 24.00mm
Spring inner diameter - 16.50mm

Set includes:
Single springs - 20 pcs. SPR-A2416

€430.00
